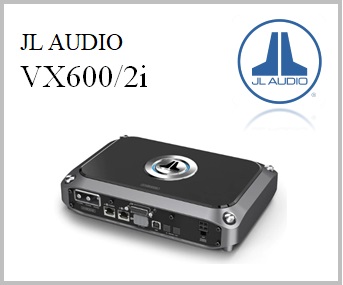

JL Audio VX600/2i

$2,900.00

Specification:

  • 14.4v @ 4 Ω – 180w RMS x 2
  • 14.4v @ 2 Ω – 300w RMS x 2
  • 14.4v Bridged @ 4Ω – 600w RMS x 2
  • 12.5v @ 4 Ω – 140w RMS x 2
  • 12.5v @ 2 Ω – 225w RMS x 2
  • 12.5v Bridged @ 4Ω – 450w RMS x 2
  • Frequency Response – 12 Hz – 24 kHz (+0, -1dB)
  • S/N Ratio, referred to highest rated power – >99 dB below rated power (A-weighted, 20 Hz – 20 kHz noise bandwidth)
  • S/N Ratio, referred to 1 W – >76 dB (A-weighted, 20 Hz – 20 kHz noise bandwidth)
  • S/N Ratio, referred to highest rated power (Digital Inputs) – 100 dB (A-weighted, 20 Hz – 20 kHz noise bandwidth)
  • S/N Ratio, referred to 1 W (Digital Inputs) – 78 dB (A-weighted, 20 Hz – 20 kHz noise bandwidth)
  • Damping Factor @ 4 Ω – >100 / 50 Hz
  • Damping Factor @ 2 Ω – >50 / 50 Hz
  • THD+N @ Rated Power – <1% @ 2 Ω per Ch.
  • Input Voltage Range @ RCA Inputs – 200 mV – 16 V RMS
  • Min.Copper Power / Ground Wire Gauge – 4 AWG wire
  • Fuse Rating – 50 A (AFS, AGU or MaxiFuse™)
Categories: , Tags: ,

Description

2-Channel Class D Full-Range Amplifier with Integrated DSP, 300 W x 2 @ 2 Ω / 180 W x 2 @ 4 Ω – 14.4V

Designed to simplify great audio, every VXi amplifier combines our advanced NexD2™ switching amplifier technology with an integrated, full-featured digital signal processor.

With our second-generation NexD2™ technology, the VX600/2i full-range amplifier outputs up to 180 watts per channel into 4 ohms, or a powerful 300 watts into 2 ohms. It can also be bridged into 4 ohms to generate a stunning 600 W x 1.

The NexD2™ full-range technology in this amplifier is DSP-controlled and features a reduced loop area design utilizing DirectFET™ outputs for outstanding fidelity, very low noise and exceptional efficiency. The amplifier chassis is ultra-compact, with all connections on one side, to greatly simplify installation into tight spaces.

Instead of traditional control knobs and switches, all amplifier adjustments and DSP functionality are configured via a compatible external device (PC, Tablet or Smartphone), with the appropriate JL Audio TüN™ Software application installed.

Amplifier includes: Power Connector (for 4 AWG wire), Analog Input/Pre-Out Harness, Speaker Output Harness, 6 ft A/B USB Cable
