Helix P Six DSP MK2

$2,300.00

Specifications:

Output power RMS / max.
– @ 4 Ohms Channel A – F: 120 / 240 Watts per channel
– @ 2 Ohms Channel C – F: 230 / 460 Watts per channel
– @ 1 Ohm
– bridged @ 4 Ohms
– bridged @ 2 Ohms
Amplifier technology Ultra HD Class D
Inputs 6 x RCA / Cinch
6 x Highlevel speaker input
1 x Optical SPDIF (12 – 96 kHz)
1 x Remote In
Input sensitivity RCA / Cinch 2 – 4 Volts or 4 – 8 Volts
Highlevel 5 – 10 Volts or 10 – 20 Volts
Input impedance RCA / Cinch 64 kOhms
Input impedance highlevel 13 Ohms oder 64 kOhms
Outputs 6 x Speaker output
2 x RCA / Cinch
2 x Remote Out
Output voltage RCA / Cinch 3 Volts RMS
Frequency response 20 Hz – 44,000 Hz
DSP resolution 64 Bit
DSP power 295 MHz (1.2 billion MAC operations/second)
Sampling rate 96 kHz
DSP type Audio signal processor
Signal converters A/D: BurrBrown
D/A: BurrBrown
Signal-to-noise ratio digital input 105 dB (A-weighted)
Signal-to-noise ration analog input 100 dB (A-weighted)
Distortion (THD) < 0,008 %
Damping factor > 100
Operating voltage 10.5 – 32 Volts (max. 5 sec.down to 6 Volts)
Idle current 2200 mA
Max. remote output current 500 mA
Fuse 3 x 20 A LP-Mini-fuse (APS)
Additional features HEC slot, ADEP circuit, Auto Remote switch, Control Input
Dimensions (H x W x D) 50 x 260 x 190 mm /
1.97 x 10.24 x 7.48“

Description

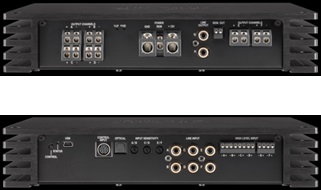

The HELIX P SIX DSP MK2 6-channel amplifier is not built to solely deliver loads of clean power; it also incorporates a cutting-edge 8-channel DSP with outstanding processing power. This amalgamation sets a completely new standard with its “Ultra HD Class D” amplifier technology.

Thanks to its 96 kHz sampling rate and an extended audio bandwidth of more than 40 kHz, this technological feat of precision engineering raises the bar in terms of sound quality.

If we put all that aside for a moment, versatility was another major milestone to be reached during the development process.  Therefore, we are happy to introduce HEC. The HELIX Extension Card (HEC) slot allows you to extend the devices possibilities well beyond the commonplace RCA jacks.  Interfaces like a Bluetooth® Audio Streaming module or a High Resolution Audio USB soundcard have been crafted to give you more options than ever.
