ESB Audio 2.6K2



  • Model: 2.6K22-way speaker system

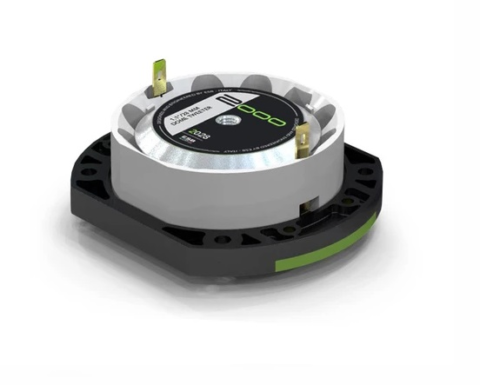

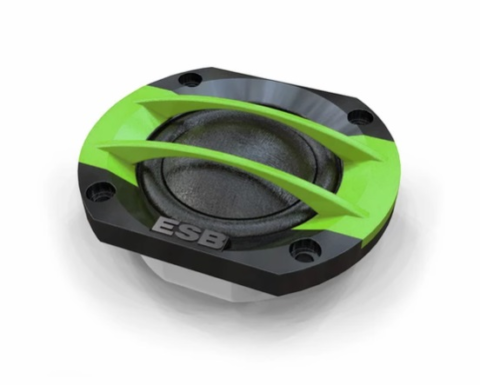

  • Tweeter – 2028
  • 28 mm voice coil
  • Neodymium magnet

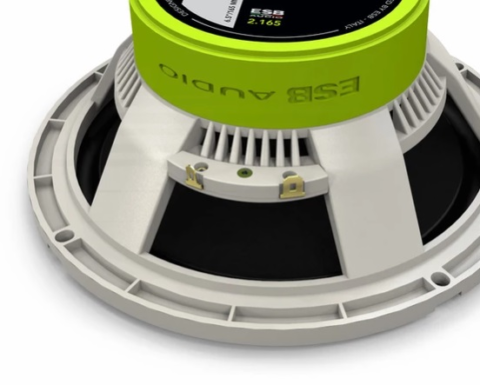

  • Mid-Woofer – 2165
  • FEA motor optimized
  • Nominal Impedance: 4 Ohm
  • Nominal Power: 90 W (Tw.), 120 W (Woofer)
  • Transient Power: 180 W (Tw.), 240 W (Woofer)
  • Frequency Response: 48 Hz ~ 25 KHz


ESB Audio 2000 series – 2.6K2

ESB speaker 2.6K2 is an entry-level series. include advanced technologies for car audio speaker to serve the music in car. All the knowledge and experience of ESB R&D has been transferred to those special components, to obtain maximum audio performance as bandwidth, dynamic in music response and more fidelity reproduction of sound details. A reference product for your category. This system include more advanced technology development for car audio speaker to serve the music in car. This systems can be virtually used on every car, it is able to produce a great sound even with moderate power amplifiers. A reference product for your category.

Neodymium magnet is a high-grade type to eliminate magnetic lose at high temperature. Torcon® soft dome, an exclusive Polyphenylene Sulfide (PPS) with a high-performance fiber that offers superb heat resistance, low weight and excellent self damping, to give a resonance free frequency response until well audible frequency. The semi-catenary profile on our diaphragm provides maximum stiffness at the tip of the dome. The result is clean, sooth and transparent sound reproduction with high efficiency from 900 Hz to 25 KHz at high power handling capacity.

The special ventilation design, SVS (Surround Vented System) provides two benefit: optimal cooling of moving coil to be able to handle high power without dynamic compression and avoiding compressing the air at the back of the dome, with a great reduction in distortion and extending response to lower frequency. Residual resonance are killed by the under dome damping material named dB Cloth® , this extends the frequency response to the lower limits and reduces harmonic distortion. The protection grill can be supplied in different colors (white, black and green) to adapt to the vehicle dashboard. The front faceplate can be easily removed with clips and replaced with an adaptor for mounting from inside of the door panels. Tweeter can slide inside adaptor in five different position for a wide range of applications and/or assembly. A practical “cup” allows mounting above the dashboard or above the pillar using different type of orientation. The tweeter is supplied with a passive crossover with a practical cable connection and fast-on. (The crossover must be placed in a dry place)

        ESB Audio, 2000 series, 2.6K2      ESB Audio, 2000 series, 2.6K2           ​ESB Audio, 2000 series, 2.6K2
